IP Address of SIP Phone working in OSK4K

LineMann

Systems Engineer
Sep 28, 2020
11
0
1
IN
Hi...
If anyone know the syntax of command for finding out IP address of all SIP Phone working in Unify Openscape 4K.
Thanks in advance.

This command should display all IP-Phones with their corresponding IP's:
DIS-SBCSU:,OPTIDAT;

This command should display all IP-Phones with their corresponding IP's:
DIS-SBCSU:,OPTIDAT;
Thanks for the reply, I had sometime ago come across a command which gives only IP address in tabulated form. I forgot to note it down.

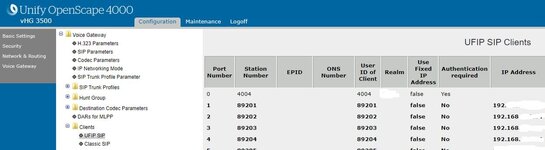

There is a HFA command that you may be thinking of - it gives the IP addresses in the tabulated form that you mention.
It only gives 0.0.0.0 for the SIP extensions.
Here is the HFA command for your records.
DISPLAY-SBCSU:TYPE=IPSEARCH,IPADDR="*"."*"."*"."*";

It works very well with UFIP devices. but there was a bug that was fixed with V10R1 RMX HF14 (new AMO SBCSU):

AB-SBCSU:9041,OPTIDAT;
H500: AMO SBCSU GESTARTET
+------ SPEZIFISCHE GERAETEDATEN --------- UFIP --------9041---------------+
| |
+------------------- ONLY FIRST REGISTRATION DATA SHOWN -------------------+
| IP ADDRESS: 192.168. 93.253 UA CSTA : FALSE |
| CLIENT TYPE: N/A EPID : SC9E3CE7 |
| UA STRING : (Unify WL4/5.0.2 [13.0000]) |
+--------------------------------------------------------------------------+

AMO-SBCSU-111 ENDGERAETE- UND S0-BUS-KONFIGURATION IN SWU
ABFRAGEN DURCHGEFUEHRT;
<
