HIPATH 4000 v6 UPGRADE ISSUE

[OKACHA]

HELLO;

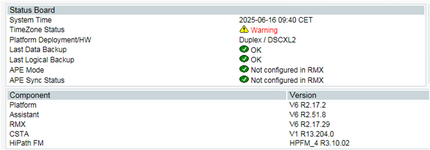

I have a hipath 4000 V6 (duplex / DSCXL2) as shown in the image .my question are:

1- how can I add Tapro STD for openscape CP400, CP600 phone set?

2- is it possible to upgrade the systeme to V11 with the DSCXL2 card or i should install an ecoserver; what about the other shelves 'LTU' (i have stackable version with 6 LTU)



THIS IS SOMME REGEN TO HELP
<REG-APC;
REG-APC;
H500: AMO APC STARTED
ACTIVATE-APC:"BS-PCI ",ADS,BP;
EXEC-APC;
H16: ACTIVATE-APC:"BSDUAL ",SWU,BP;
H16: ACTIVATE-APC:"DBLARGE ",SWU,BP;
H16: ACTIVATE-APC:"COMLAN ",SWU,BP;
H16: ACTIVATE-APC:"POOL1 ",SWU,BP;
H16: ACTIVATE-APC:"I-POOL1 ",SWU,BP;

AMO-APC -111 APPLICATION CONFIGURATION
REGENERATE COMPLETED;
<REG-DBC;
REG-DBC;
H500: AMO DBC STARTED
EXEC-DBC:"4000 ",6;

AMO-DBC -111 DATABASE CONFIGURATION
REGENERATE COMPLETED;
<REG-CONSY;
REG-CONSY;
H500: AMO CONSY STARTED
ADD-CONSY:"P101",CAB,"CABPSD ";
ADD-CONSY:"P101",FRAME,1,"PSD ",,;
ADD-CONSY:"P201",CAB,"CSCPCI ";
ADD-CONSY:"P201",FRAME,1,"CSCPCID ",,BPA&BPB&A1;
ADD-CONSY:"P202",CAB,"UPR ";
ADD-CONSY:"P202",FRAME,1,"LTUW1 ",1,;
ADD-CONSY:"P203",CAB,"UPR ";
ADD-CONSY:"P203",FRAME,1,"LTUW1 ",2,;
ADD-CONSY:"P204",CAB,"UPR ";
ADD-CONSY:"P204",FRAME,1,"LTUW1 ",3,;
ADD-CONSY:"P301",CAB,"UPR ";
ADD-CONSY:"P301",FRAME,1,"LTUW1 ",4,;
ADD-CONSY:"P302",CAB,"UPR ";
ADD-CONSY:"P302",FRAME,1,"LTUW1 ",5,;
ADD-CONSY:"P303",CAB,"UPR ";
ADD-CONSY:"P303",FRAME,1,"LTUW1 ",6,;

AMO-CONSY-111 MANAGEMENT OF SYSTEM CONFIGURATION DATA
REGENERATE COMPLETED;
<REG-DDSM:A1;
REG-DDSM:A1;
H500: AMO DDSM STARTED
ADD-DCSM:A1,1,HD,"STDH6";
ADD-DASM:A1,1,7200&1600&2400&1120&16384&7200&
9868,4096&4096&4096&4096&4096&4096&4096;
ADD-DLSM:A1,1,E,"DS:"
;
ADD-DLSM:A1,1,F,"BDA:"&"BD:"&":TMD:"&"AS:"&":AMD:"&
"MP:";
ADD-DLSM:A1,1,G,":CGD:"
;
ADD-DLSM:A1,1,H,"MS:"&"SY:"
;
ADD-DLSM:A1,1,I,":SCR:"
;
ADD-DLSM:A1,1,J,":GLA:"
;
ADD-DLSM:A1,1,K,"IAG:"
;
ADD-DCSM:A1,4,HD,"STDH6";
ADD-DASM:A1,4,7200&1600&2400&1120&16384&7200&
9868,4096&4096&4096&4096&4096&4096&4096;
ADD-DLSM:A1,4,E,"DS:"
;
ADD-DLSM:A1,4,F,"BDA:"&"BD:"&":TMD:"&"AS:"&":AMD:"&
"MP:";
ADD-DLSM:A1,4,G,":CGD:"
;
ADD-DLSM:A1,4,H,"MS:"&"SY:"
;
ADD-DLSM:A1,4,I,":SCR:"
;
ADD-DLSM:A1,4,J,":GLA:"
;
ADD-DLSM:A1,4,K,"IAG:"
;
ADD-DCSM:A1,6,HD,"STDH6";
ADD-DASM:A1,6,7200&1600&2400&1120&16384&7200&
9868,4096&4096&4096&4096&4096&4096&4096;
ADD-DLSM:A1,6,E,"DS:"
;
ADD-DLSM:A1,6,F,"BDA:"&"BD:"&":TMD:"&"AS:"&":AMD:"&
"MP:";
ADD-DLSM:A1,6,G,":CGD:"
;
ADD-DLSM:A1,6,H,"MS:"&"SY:"
;
ADD-DLSM:A1,6,I,":SCR:"
;
ADD-DLSM:A1,6,J,":GLA:"
;
ADD-DLSM:A1,6,K,"IAG:"
;

AMO-DDSM -111 DISK STATUS
REGENERATE COMPLETED;
<DIS-BCSM:A1,HW;
DIS-BCSM:A1,HW;
H500: AMO BCSM STARTED
SCONF FOR BC: WITHOUT

OUTPUT OF SLOTS AND CODE NUMBERS FOR BC B5301-X AND EC :

--------+-----------+--------+-+-------------+-----+----------+------------+
ADDRESS |NOM. MOD. | HW ABB.| |ACTUAL MOD. |STATE| FIRMWARE | MOD.STAT |
--------+-----------+--------+-+-------------+-----+----------+------------+

OUTPUT THE LINE BOARDS FOR SWU:

------------+-----------+--------+-+-----------+-----+----------+------------+
LTG LTU SLOT| NOM. MOD. | HW-ABB.| |ACTUAL MOD.|STATE| FIRMWARE | MOD. STATE |
------------+-----------+--------+-+-----------+-----+----------+------------+

AMO-BCSM -111 BOARD CONFIGURATION, SERVICE MODULE
DISPLAY COMPLETED;
<REG-FEASU;
REG-FEASU;
H500: AMO FEASU STARTED
CHANGE-FEASU:A,CRITM&LDME&SPDC&SPDI&HTVCE&HTFAX;
CHANGE-FEASU:A,HTDTE&OVR&FRKN&NIGHT&COSXCD&COSXKEY;
CHANGE-FEASU:A,DCOSX&COSXATND&COSXT&COSXDP&ICPTDID&HOTRCL;
CHANGE-FEASU:A,DND&VARCONF&TRACE&SNR&RKNOVR&CBK;
CHANGE-FEASU:A,DSS&SPLIT&ONHKTRNS&PU&RSVCO&SER;
CHANGE-FEASU:A,DDTES&ISTR&RNG&NOCHRG&TRACCO&LEDSIGN;
CHANGE-FEASU:A,VMSDP&EMOVR&EMRLS&SYNCANN&CDRINH&CDRIC;
CHANGE-FEASU:A,CDROGNW&CDROGTR&DISCHINH&DISCHNW&DISCHTR&LCRET;
CHANGE-FEASU:A,POSTBUSY&POSTFREE&RELOCATE&VOICO&HTNW&PININT;
CHANGE-FEASU:A,TIMEDREM&ATTR&ECFW&CPS&INCPRIO&CALOGOPT;
CHANGE-FEASU:A,CDRE&DIRCPCKP&DCPA&NCT&CDRACC&CLIP;
CHANGE-FEASU:A,MOBHFA;
CHANGE-FEASU,WTATND&RELCON&RERING&AUTOV&DCBB&DCBNOA;
CHANGE-FEASU,PINNW&XFBACALL&XFBADIAL&RCCB&MLPP&SMARTCRD;
CHANGE-FEASU,SILMON;

AMO-FEASU-111 CUSTOMER FEATURE LIST
REGENERATE COMPLETED;
<REG-DIMSU;
REG-DIMSU;
H500: AMO DIMSU STARTED
ADD-DIMSU:ADMCC,16379,4094;
ADD-DIMSU:ADMLTG,2000;
ADD-DIMSU:APPLICAT,98,5,1,12000,3000,256,128,256,128,
1500,512,300,900,300,256,3200,2000,2000,2000,
256;
ADD-DIMSU:BASIC,12000,12632,12000,6000,32,300,1800,2,0,
40,2400,600,2800,350,1450,850,818,10,600,
3000,6000,13500,5688,55054,12042,1200,1920,1800,6000,
16000,2700,256;
ADD-DIMSU:NETWORK,3,400,400,1200,1024,200,1000,500,1000,
60,400,50,180,0,0,1500,600,1200,0,
0,0,0,0,0,0,120,0,0,0,
0,0,0,0;
ADD-DIMSU:SYSTEM,1980,1600,1,15,15,480,
8,83,1024,2500,0,0,143;
ADD-DIMSU:USER,12000,2400,6000,600,8400,16,3000,2400,12000,
500,12000,1200,12000,12000,1200,20,3200,400,18000,
24000,3600,2400,63,30,2000,50,2000,240,
500;

AMO-DIMSU-111 DIMENSIONING OF FEATURES, SWITCHING UNIT
REGENERATE COMPLETED;
<DISP-DIMSU:BASIC;
DISP-DIMSU:BASIC;
H500: AMO DIMSU STARTED
+------------------------------------------------------------+
| MAX- SYS- |
| USED USED ACTUAL | STD MAX |
| CCIDXS : 1078 1082 16379 | 16379 16379 |
| CCIDXD : 2349 2351 4094 | 4094 4094 |
| GPIDX : 1364 1364 2000 | 2000 4000 |
| LINES : 3312 3384 32000 | 32000 32000 |
| PORTS : 3065 3270 16000 | 16000 16000 |
+------------------------------------------------------------+
| STATIONS: |
| STN : 578 1068 12000 | 12000 20000 |
| |
| TERMINALS: |
| BUS : 230 301 12632 | 12632 16000 |
| OPTCC : 204 215 12000 | 12000 14000 |
| OPTEXP : 171 178 6000 | 6000 32000 |
| ATND : 6 6 32 | 32 256 |
| ES : 0 0 300 | 300 7000 |
| ESSTN : 0 0 1800 | 1800 14000 |
| S2PP : 0 0 2 | 2 30 |
| AUXDIGI : 0 0 0 | 0 8000 |
| |
| TRUNK AND TIE-LINE CIRCUITS: |
| PRI : 3 5 40 | 40 400 |
| TRK : 33 39 2400 | 2400 7920 |
| CRCP : 4 6 600 | 600 4000 |
| |
| DIAL PLAN: |
| DPLNCD : 359 359 2800 | 2800 32000 |
| DPLNGR : 0 0 350 | 350 32000 |
| |
| DEVICE SEARCH: |
| RTE : 9 100 1450 | 1450 64000 |
| MG : 9 10 850 | 850 16000 |
| SG : 22 24 818 | 818 2000 |
| ATNDGR : 1 1 10 | 10 100 |
| HT : 1 1 600 | 600 999 |
| HTCQB : 0 1 3000 | 3000 5000 |
| |
| CALL PROCESSING: |
| CPB : 3 17 6000 | 6000 10000 |
| SILI : 7 26 13500 | 13500 16000 |
| COSTI : 3 15 5688 | 5688 5688 |
| |
| DERIVED PARAMETERS: |
| LODEN : 1460 1929 55054 | 55054 57340 |
| SU : 210 221 12042 | 12042 14272 |
| NWBCHL : 86 146 1200 | 1200 12000 |
| LODS0 : 1 9 1920 | 1920 8000 |
| LODTMD : 0 3 1800 | 1800 8000 |
| CPDBUF : 0 25 6000 | 6000 10000 |
| DTILTG : 579 582 16000 | 16000 32000 |
| DTITMD : 0 4 2700 | 2700 12000 |
| NWNUNSUB: 0 0 256 | 256 32000 |
| |
+------------------------------------------------------------+

AMO-DIMSU-111 DIMENSIONING OF FEATURES, SWITCHING UNIT
DISPLAY COMPLETED;



[RioGrande75]

1.) Afaik CP phones are supported from V8R1 on - so no support on very old V6.

2.) Acutal OS4k versions like V10R1/V11R0 require EcoServer. You can wire the LTUCA's directly to the backplane of EcoServer.



[thepfy]

When moved from V5 to V7 we needed to move to Ecoservers.
As per RioGrande75, no need to replace the shelves.

For V10+ Optisets are no longer work.
