(OP)
Hello,

So I have a client that is having an issue dialing two Local Numbers from the IPO. When they attempt to make the outbound call, the 9508 displays "Incompatible". The call works fine from their cell phone.

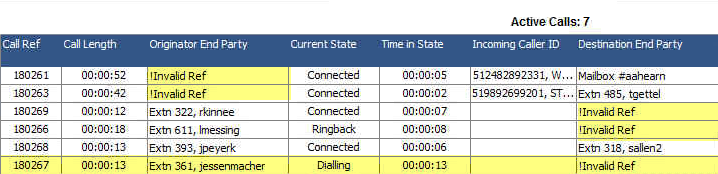

I decided to watch SSA as they make the call again and I am seeing "!Invalid Ref" as the Destination.

What is even stranger is that I am seeing it all over SSA. I have never seen this error before. Thoughts?

RE: !Invalid Ref

It would be better to get a monitor trace to see what they are dialing and what the system is doing with it.

-Austin
I used to be an ACE. Now I'm just an Arse.

RE: !Invalid Ref

(OP)
Hi AACon,

I did a trace, below is what I have that I believe to be relevant to the call. The Red Highlighted Number is what they are having an issue calling:

16:30:10 2662836476mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: Setting Hard Timer 4000
16:30:10 2662836476mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: LOOKUP CALL ROUTE: GID=0 type=100 called_party=512486282561 sub= calling=361 calling_sub= dir=out complete=0 ses=0
16:30:10 2662836477mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: ADD TARGET (N): number=512486282561 type=100 depth=1 nobar=1 setorig=1 ses=0
16:30:10 2662836653mS RES: Mon 18/9/2017 16:30:10 FreeMem=47567092 Heap=45474844(1) Cache=2092248 MemObjs=34228(36418) CMMsg=8(9) ASN=0 Buff=5200 1353 1000 7362 5 Links=85217(85971) BTree=3356(6936) CPU=19.26% CPUStats=19.08%/2/8/144/11911/15010/00.48%/1
/03.24% MCR=0 MCW=0
16:30:10 2662836654mS RES2: IP 500 V2 9.1.6.0 build 153 Tasks=52 RTEngine=0 CMRTEngine=0 ExRTEngine=0 Timer=99 Poll=0 Ready=0 CMReady=0 CMQueue=0 VPNNQueue=0 Monitor=2 SSA=1 TCP=50(TLS=5) TAPI=0 Partner=0 ASC=1 SYS=MNTD OPT=UMNT SDSPD=2034
16:30:10 2662836654mS RES4: XML MemObjs=63 PoolMem=5796992(3) FreePoolMem=5781688(0)
16:30:10 2662836654mS RES5: CLog MemObjs=4866 FreePoolMem(Objs)=6968(134) TotalMem=704500
16:30:14 2662840476mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: TimerExpired cause=CMTCDelayedProcessing
16:30:14 2662840476mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: LOOKUP CALL ROUTE: GID=0 type=100 called_party=512486282561 sub= calling=361 calling_sub= dir=out complete=1 ses=0
16:30:14 2662840476mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: ADD TARGET (N): number=512486282561 type=100 depth=1 nobar=1 setorig=1 ses=0
16:30:14 2662840477mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: USER SC: 512486282561 3 12486282561 sc=type=Dial code=5N;, num=NSi9892698242
16:30:14 2662840477mS CMARS: FindActiveARSByGroupID GroupID=0 - Not Found
16:30:14 2662840477mS CMLRQ: FindActiveLRQByGroupID GroupID=0 - Not Found
16:30:14 2662840478mS CMCallEvt: 0000000000000000 0.660856.0 -1 BaseEP: NEW CMEndpoint f17705c8 TOTAL NOW=11 CALL_LIST=5
16:30:14 2662840478mS CMTARGET: ISDN BChannel 23: in-service check = 1
16:30:14 2662840478mS CMTARGET: ISDN BChannel 23: in-service check = 1
16:30:14 2662840480mS CMTARGET: DIAL LINE: 180671 GROUP = 0 SUCCESS = f17705c8
16:30:14 2662840480mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: INITIAL TARGETING SUCCEEDED
16:30:14 2662840480mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: GetNoAnswerTimer:15
16:30:14 2662840481mS CMCallEvt: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: StateChange: END=A CMCSDialling->CMCSDialled
16:30:14 2662840481mS CMExtnEvt: v=12 State, new=Proceeding old=Dialling,0,0,jessenmacher
16:30:14 2662840481mS CMExtnTx: v=361, p1=0
CMProceeding
Line: type=DigitalExtn 8 Call: lid=0 id=660854 in=0
Timed: 18/09/17 16:30
16:30:14 2662840481mS CMCallEvt: 0000000000000000 0.660855.0 180671 TargetingEP: StateChange: END=B CMCSIdle->CMCSOffering
16:30:14 2662840482mS CMCallEvt: c0a8000a000a1578 0.660856.0 180671 Q931 Trunk:6 CHAN=23: StateChange: END=T CMCSIdle->CMCSOffering
16:30:14 2662840483mS PRN: Setting configured voice gain for ch 23.
16:30:14 2662840483mS CMLineTx: v=6
CMSetup
Line: type=Q931Line 6 Call: lid=0 id=660856 in=0
Called[12486282561] Type=National (2) Reason=CMDRdirect Calling[9892698242] Type=National Plan=ISDN
BC: CMTC=Speech CMTM=Circuit CMTR=64 CMST=Default CMU1=ULaw
BChan: slot=0 chan=23
Timed: 18/09/17 16:30
Locale: enu
16:30:14 2662840483mS CD: CALL: 0.660854.0 BState=Idle Cut=1 Music=0.0 Aend="jessenmacher(361)" (10.14) Bend="Line 6" [Line 6] (0.0) CalledNum=512486282561 () CallingNum=361 (jessenmacher) Internal=0 Time=9896 AState=Dialled
16:30:14 2662840485mS ISDNL3Evt: v=6 stacknum=6 State, new=Initiated, old=NullState id=660856
16:30:14 2662840508mS ISDNL3Evt: v=6 stacknum=6 State, new=Proceeding, old=Initiated id=660856
16:30:14 2662840508mS CMLineRx: v=6
CMProceeding
Line: type=Q931Line 6 Call: lid=0 id=660856 in=0
BChan: slot=0 chan=23
16:30:14 2662840509mS CMCallEvt: 0000000000000000 0.660855.0 180671 TargetingEP: RequestEnd c0a8000a000a1578 0.660856.0 180671 Q931 Trunk:6 CHAN=23
16:30:14 2662840509mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: CancelTimer CMTCNoAnswerTimeout
16:30:14 2662840509mS CMCallEvt: 0000000000000000 0.660855.0 -1 BaseEP: DELETE CMEndpoint f171e7e8 TOTAL NOW=10 CALL_LIST=5

RE: !Invalid Ref

Are they supposed to dial the US prefix (1) ?

But it seems like you didn't get the whole trace, you only got to the "Proceeding" message, should come something else after that.
And please post traces as attached files.

"Trying is the first step to failure..." - Homer

RE: !Invalid Ref

Think the issue is that it adds 51 to your CLI, probably gets blocked by the provider.
Check your lines prefix settings.

16:30:14 2662840477mS CMTARGET: c0a8000a000a1576 0.660854.0 180671 jessenmacher.0: USER SC: 512486282561 3 12486282561 sc=type=Dial code=5N;, num=NSi9892698242
16:30:24 2662850082mS CMLineRx: v=6
CMSetup
Line: type=Q931Line 6 Call: lid=6 id=15 in=1
Called[912486282561] Type=Unknown (0) Reason=CMDRdirect SndComp Calling[519892698242] Type=Unknown Plan=ISDN Pres=Allowed (0)
BC: CMTC=Speech CMTM=Circuit CMTR=64 CMST=Default CMU1=ULaw
BChan: slot=0 chan=1

"Trying is the first step to failure..." - Homer

RE: !Invalid Ref

Close and reopen system status. You will no longer see this upon reopening. This is a bug that I have dealt with a handful of times.

RE: !Invalid Ref

(OP)
janni78: It is only happening on two numbers they try and call. All the rest of outbound works fine. And they dial 500-1000 times out a day.

RE: !Invalid Ref

That makes me think that it is on the far end.
Are they supposed trunks at the other end that maybe send a wrong message.

Joe W.

FHandw, ACSS (SME)


"This is the end of the world, make sure to buy your T-shirt before it is too late"
Original expression of my daughter

RE: !Invalid Ref

(OP)
Westi: I am not sure what you mean "Are they supposed trunks at the other end that maybe send a wrong message."

RE: !Invalid Ref

Try changing your Nsi in the calling number field to Ns - could be the call type that is causing the issue. Seems odd that it only affects two numbers, but its worth a shot, unless the si is required to make all calls go out.
